Description
Nordfab QF® In-cut duct fittings are used to cut into existing duct lines to begin a Quick-Fit (QF) section in the system. QF In-cuts are standard 30° or optional 45°.
In-cuts are also known as “saddle taps”.

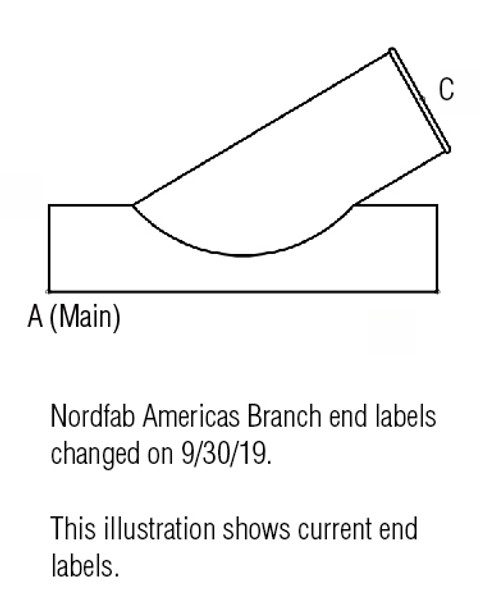

Specify A and C diameter and end treatment, standard end is QF. Priced by C diameter.
Saddle length and width = 3" all directions from Branch Tube C
- Available in Galvanized and 304SS or optional 316SS or carbon steel
- Available with flanged ends in diameters up to 72", and other various end types
- Available with 45° angle
- Optional gauges 20, 18, 16, 14, 12 and 10
Contact us for assistance with larger sizes and material / gauge options.
Warranty Information
Nordfab products have a limited 12 month warranty for manufacturing defects.
Warranty details here: Nordfab Terms & Conditions
Additional Information
| GENERAL SPECIFICATIONS | |
|---|---|
Legacy SKU |
3223-2008-100000 |
Material |
Galv |
Size |
20 in |
End Type |
QF |
Gauge |
20ga |
Degrees |
30 |
| DIMENSIONS & END TYPES |
|---|
Dimension |
End Type |
