Description
14 Gauge Y-Branches (sometimes called “true wyes”) have leak-free, solid welded seams. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.
Y-Branches in 14 gauge galvanized steel with flanged ends are available in diameters from 10" to 40″.
Standard 60º Optional 90º.

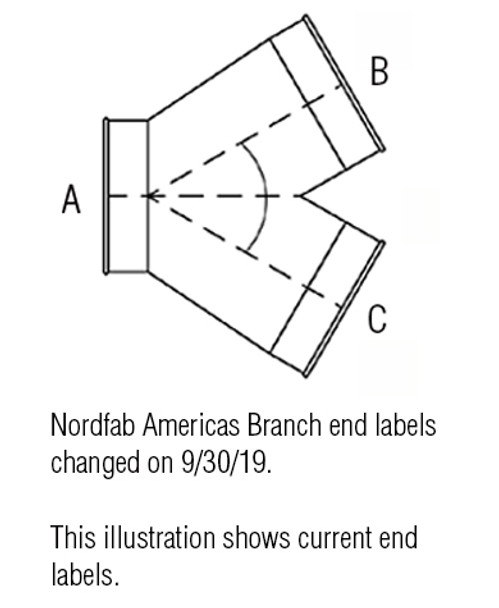

When ordering, specify A, B, C . All branches are priced by the large end A.
Both B & D each must be at least 50% of A. With B or D being at least 80% of the opposite leg.
Leg length = 1/2 greater of B or D.
Use the following formula to determine overall length: L = A + 4”.
If flanged, vanstone end with rotational Angle Flanges is standard. If welded flanges required, clocking must be specified.
- Available in Galvanized
- Available with QF ends in diameters up to 24", and other various end types
- Available with 90° angle
- Optional gauges 22, 20, 18, 16, 12 and 10
Contact us for assistance with larger sizes and material / gauge options.
Warranty Information
Nordfab products have a limited 12 month warranty for manufacturing defects.
Warranty details here: Nordfab Terms & Conditions
Additional Information
| GENERAL SPECIFICATIONS | |
|---|---|
Legacy SKU |
4821-0906-106005 |
Material |
Galv |
Size |
9 in |
End Type |
AFL |
Gauge |
14ga |
Degrees |
90 |
Length |
0 |
| DIMENSIONS & END TYPES |
|---|
Dimension |
End Type |
